Small OD 11/32" Umbrella Seals, all NYLON

GM UMBRELLA SEALS, 11/32"

Many SB Chevy engines between 1980-1992

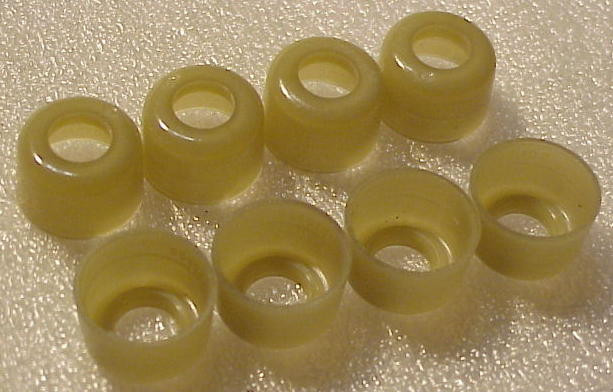

Package of 8 seals.

These seals are manufactured from all Nylon.

They were used by GM on many of their SB Chevy engines in the 80's.

As a way to reduce oil consumption, these can also be added to earlier engines which only have o-ring seals.

Can also be used as an universal umbrella seal providing adequate clearances exist.

     Specification Data:

• Fits: 11/32" Valve Stems.
• Inside Diameter, smallest point: .605”
• Inside Diameter, widest point: .635"
• Outside Diameter: .715"
• Height: .450” Tall
• Seal Material: Poly Acrylic
• Material Temp Rating: 375F
• Seal Type: Umbrella
• Number of seals included in purchase: Eight
• Valve seal protector sleeve included? No- can not use w/ this type of seal.

Also available in a viton grommet version. Check our other 11/32" umbrella seal listings or write.
