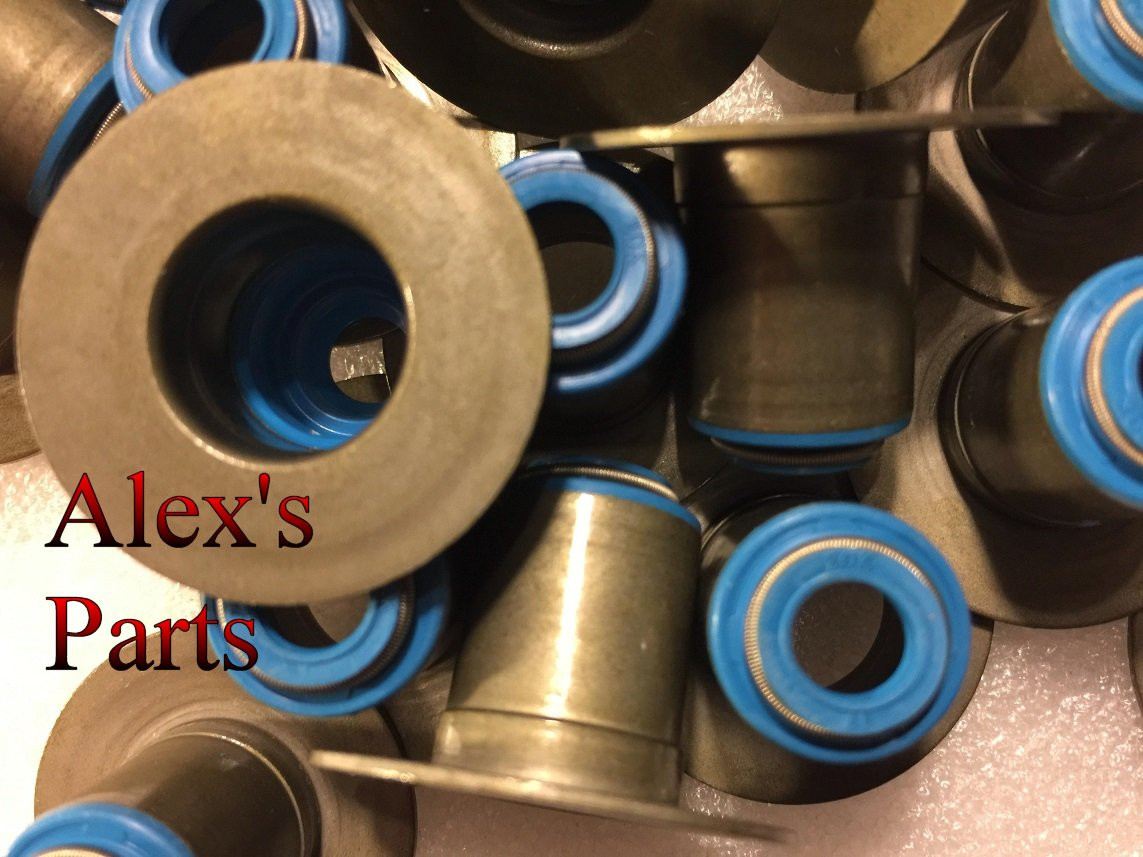

Viton Valve Seals for LS engines with dual springs, VS-605, Set of 16
)
Product Description
LS Hat Seals for Dual Springs
Viton Valve Seals for use w/ Dual Valve Springs
Fit's Dual Valve Springs with an spring ID of: .655
Here's an opportunity to acquire a set of High Grade Viton "Hat " style seals for use with you favorite dual springs.
GM factory hat seals are too large to accept dual springs, they won't fit over the seal.
Our VSS-605 hat seals are the easiest solution to this problem.
Manufactured from Premium Viton material, superior to poly acrylic seals.
Specs:
- For- 8mm Diameter Stems
- Fits- .499"-.502" Guide Diameter
- Overall Seal Height- .900"
- Flange Diameter @ base- 1.250"
- Seal OD @ the Base- .655" (Use with dual spring w/ a minimum inner spring ID of .660" or bigger)
- Viton Material Temp Rating- 450 Degrees
- 2002 up LS engines w/ dual springs.
Not for engines with factory stock valve springs. Check our other listings for hat seals for beehive springs.
