Universal Fit, .502" O.D. Guides

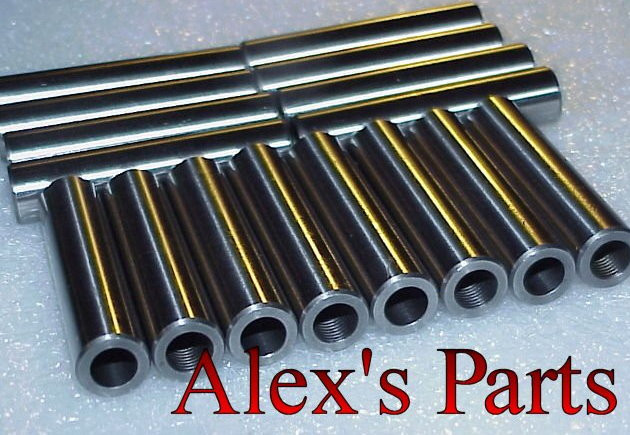

Cast Iron Valve Guides, .374" X 2.375" Long- Set of Sixteen

Verify your required length before purchase. Longer lengths available in our other listings.

These can be fitted to many different domestic iron head applications running 3/8" valves, these have a .373" ID

.502" Outside diameter guides are the std of the industry.

This type of guide is used in heads which have "integral" guides. This means the guides are part of the casting and are not removable.

Heads are set up in a "Seat and Guide Machine" and each guide is core drilled, then reamed to .500".

Guides are then pressed or "driven" into place. Any extra length is then spot faced to fit.

In our shop, after the guides are installed, we take a .500" valve seal cutter to clean up any old remaining guide material from the seal side of the guides so .500" Positive seals could be installed, as well as the removal of any remaining, thin-wall iron material.

If needed, guide inside diameters are then fitted by either reaming or honing w/ Sunnen tooling.

     Specifications:

• .502" Outside Diameter
• 2.375" Overall Length
• .373" Inside Diameter (before installation)
• Spiral ID: NO

• Plain ID: YES

• Material- Cast Iron
• Manufacturer- Precision Engine Parts

• Quantity included in purchase- sixteen guides
