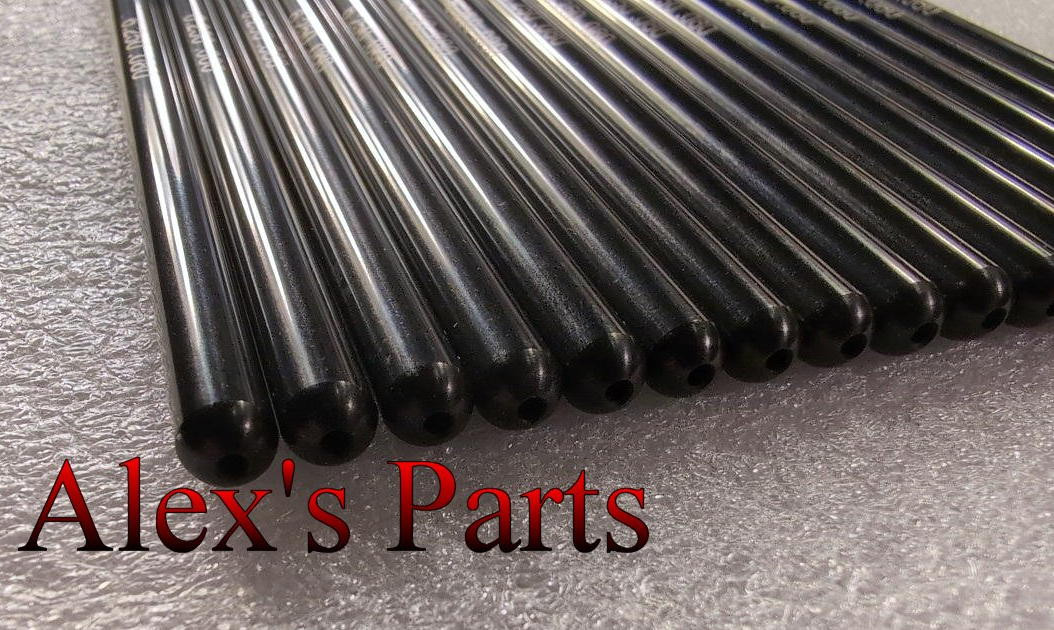

SINGLE PIECE DESIGN, CHROMOLY STEEL

5/16" X 6.250" X .080" WALL, Heat Treated Pushrods- Std Length

Applications: Small Block Ford w/ Hyd Roller, GT40P, GT40, E7 SBF, STD Length

Purchase quantity 1 to get sixteen pushrods

These heavy duty pushrods are Top Shelf Quality!

Far Superior to typical welded ball pushrods, these are manufactured from a single piece of 4130 Chromoly Steel and finished machined to hold T.I.R. (total indicated run-out) to a tight tolerance.

Intended for High Performance and race applications running high RPM.

Std Length, use to replace stock pushrods for 5.0/302 w/ factory Hyd Roller Cam.

     Specifications:

• These are Std length for 302 w/ factory hyd roller, replaces the OEM pushrod perfectly.

• Measured Length, end to end- 6.250"
• Advertised or Gauge Length- 6.240" (etched on pushrod) Measured using the ".140" Gauge Diameter" method at the pushrod factory

• Theoretical Length, 6.273" (this is what it would measure if the ends did not have oil holes)
• Diameter- 5/16"

• Tip Radius: .312"
• Wall Thickness- .080" Wall.

• Manufactured from Premium 4130 Seamless Chromoly Steel Material.
• Through Hardened for maximum column strength.
• Can be used with or without hardened guide plates.
• Suitable for High Spring Pressures.
• Usage- Hot Street to Race Applications.

• Precision manufactured on modern CNC turning centers to tight tolerances.

Std length for SB Ford 302/5.0 engines.

Various lengths for SB Ford 302/5.0:

• 6.200" (on order)
• 6.250" Std Length, This listing

• 6.260" +.010" longer than stock, Available in another listing

• 6.300" +.050" longer than stock, Available in another listing

• 6.310" +.060" longer than stock, Available in another listing

• 6.340" +.090" longer than stock, Available in another listing

• 6.360" +.110" longer than stock, Available in another listing

• 6.410" This length is common for select retro-fit roller lifters

• 6.450" (on order)

• Check our other listings or use the contact us link!

Tech information about pushrod length:

Since the pushrod factory uses the "140 Gauge Diameter" length and etches it onto the pushrod, the various listed lengths can get confusing.

In our HPR pushrod listings, we provide all the important length specifications to reference. .140" gauge diameter, measured length and theoretical length. Starting in Oct 2025, our 6.00"-7.00" range pushrod length checker tool for SB Ford will be available in two versions; either with, or without oil holes and will include a conversion spec sheet to determine all of the three various lengths: .140" Gauge Diameter, Theoretical length and measured lengths, you'll be able to calculate them all. Each checker tool will come with the conversion sheet. The builder will only need to measure the checker tool end to end to calculate either .140" gauge diameter or theoretical lengths.

• .140" Gauge diameter length (this is what's etched on the pushrod)
• Measured length (this is roughly what the pushrods would measure when using calipers end to end)
• Theoretical length (this is what it would measure if the pushrod ends did not have oil holes)

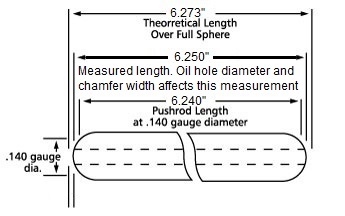

• See diagram below
