11/32" X .625", Viton Valve Seals, Flex Body Type, BB Ford & Universal, VSS-418, set of sixteen

  • Image 1
  • Image 2
Price:
$23.99
SKU:
VSS-418
Brand:
Condition:
New
Shipping:
Calculated at checkout


Product Description

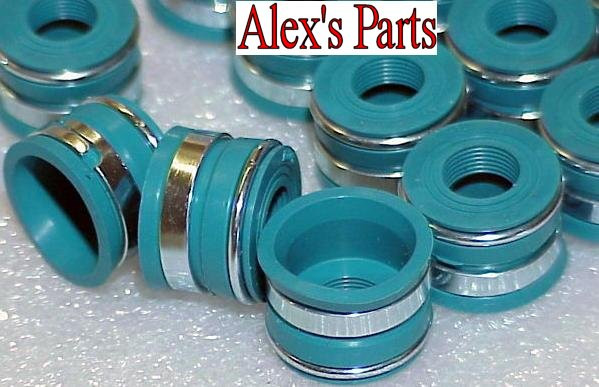

Positive Valve Seals, Blue Viton

Valve Seals, Flex Body, Universal Fit, set of sixteen

Size- 11/32"

Guide Diameter- .625"

Sixteen seals

If you’re looking for quality valve seals, you’ve come to the right place!

We continue to build our valve seal line and now have one of the largest selections of valve seals available online.

These are from our FLEX BODY SEAL family



     Specification Data:

  • Size: 11/32" X .625"
  • Fits: 11/32" Valve Stems.
  • Fits: .625" Guide Boss Diameter.
  • Wall Thickness per side: .075"
  • Total Wall Thickness: .150"
  • O.D. See Note below*
  • Seal Material: Viton
  • Material Temp Rating: 450F
  • Seal Type: Flex Body
  • Number of seals included in purchase: Sixteen
  • Valve seal protector sleeve included? YES-



* Based on the fact that flex seals fit a range of different guide diameters, the actual seal O.D. cannot be predetermined without knowing the existing guide diameter but once known, it can be easily determined using simple math.

To figure the seals outside diameter after installation, use the total wall thickness specification from the chart above and add it to your applications guide diameter.

Let’s say your applications guide diameter is .625” and the total wall thickness is .150”

Guide diameter + total wall thickness = estimated seal outside diameter.

Example- .625” + .150” = .775” estimated outside diameter.

The formula won't be 100% accurate but will be close enough to make an educated selection.



     Fitment

  • Universal fit, flexes over a range of size.
  • Any 11/32" valve application w/ a guide diameter of .625"



Need a different seal? Check our other categories and if you can’t find what you’re looking for, send us a message.

All our seals are available in bulk packs of 200 or more. Write for details.









Alex’s Parts, the smart choice in valve train products~
